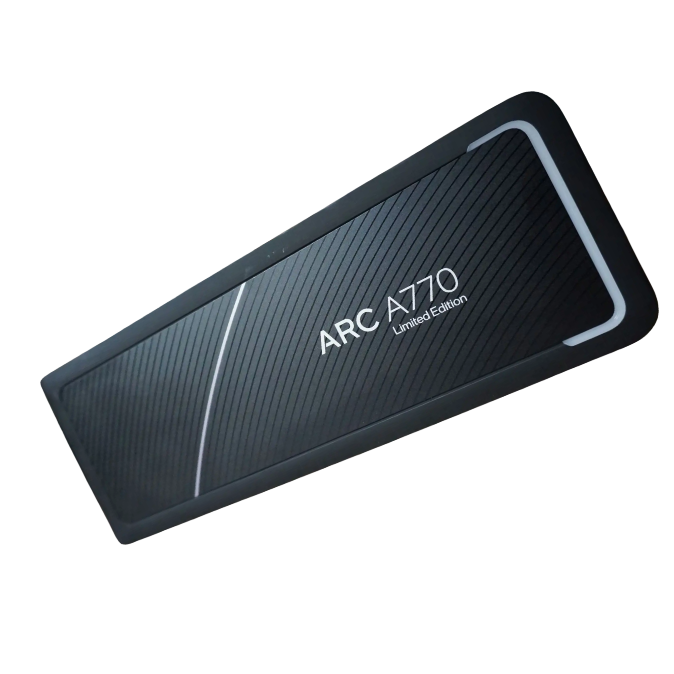

Intel Arc A770 (2022) by Intel
Starting from $349.00
Launch price for the base storage/RAM variant
Disclaimer: The price shown is the official launch price (MSRP) for the base storage/RAM configuration.
Higher storage/RAM variants cost more. Actual prices may also vary depending on your country, region, taxes, and retailer.
Higher storage/RAM variants cost more. Actual prices may also vary depending on your country, region, taxes, and retailer.
Intel's first high-end discrete gaming GPU, with 16GB of memory and built-in AV1 encoding.
About Intel Arc A770 (2022)
The Arc A770 marked Intel's re-entry into discrete gaming graphics after decades away from the dedicated GPU market, built on the Xe HPG (Alchemist) architecture with 32 Xe-cores and 16GB of GDDR6 memory. It stood out for including a hardware AV1 encoder ahead of most rivals, useful for streamers and content creators, at a competitive $349 launch price.
Full Specifications
General
Model
Intel Arc A770 (16GB)
Chipset
ACM-G10
Architecture
Intel Xe HPG (Alchemist)
Process Node
TSMC 6nm
Bus Interface
PCIe 4.0 x16
Performance
Cores
32 Xe-cores (4,096 shading units)
Ray Tracing Cores
32 Ray Tracing Units
Boost Clock
2100 MHz
Memory
Memory Size
16GB GDDR6
Memory Type
GDDR6
Memory Bus
256-bit
Power
TDP
225W
Power Connectors
2x 8-pin
Recommended PSU
650W
Connectivity
Outputs
3x DisplayPort 2.0, 1x HDMI 2.1
Dimensions
Slot Width
2-slot
Known Issues & Fixes
| Issue | Solution / Fix |
|---|---|
| Some users reported inconsistent performance and driver bugs in older DirectX 9-era games at launch, since Intel's drivers were new to gaming GPUs. | Intel released multiple driver updates addressing older API performance over the following months; keep drivers updated via Intel's Arc Control software for the latest game compatibility fixes. |
| A number of owners noted Resizable BAR is effectively required for good performance on this card, unlike most NVIDIA/AMD cards where it's optional. | Not fixable; enable Resizable BAR (or SAM) in your motherboard's BIOS settings, as Arc GPUs rely on it more heavily than competing architectures. |
Frequently Asked Questions
How much VRAM does the Arc A770 have?
16GB of GDDR6 on this configuration (an 8GB variant also exists).
Does it have hardware AV1 encoding?
Yes, one of the first consumer GPUs to include a dedicated AV1 hardware encoder.
Is Resizable BAR required?
Not strictly required, but strongly recommended for good performance; enable it in your motherboard's BIOS.
What PSU wattage is recommended?
650W.
Is it PCIe 4.0?
Yes, PCIe 4.0 x16.
Does it support ray tracing?
Yes, via 32 dedicated Ray Tracing Units.
