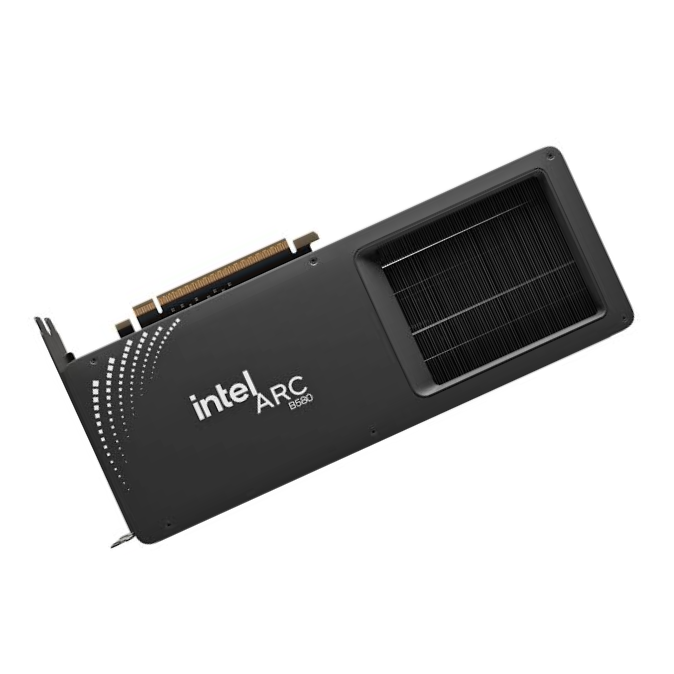

Intel Arc B580 (2024) by Intel

Name: Intel Arc B580 (2024)
Brand: Intel

Starting from $249.00

Launch price for the base storage/RAM variant

Disclaimer: The price shown is the official launch price (MSRP) for the base storage/RAM configuration.
Higher storage/RAM variants cost more. Actual prices may also vary depending on your country, region, taxes, and retailer.

Intel's second-generation Battlemage GPU, offering strong 1440p value with 12GB of memory at $249.

About Intel Arc B580 (2024)

The Arc B580 introduced Intel's second-generation Xe2-HPG (Battlemage) architecture, widely praised at launch for offering 12GB of GDDR6 memory and solid 1440p gaming performance at a $249 price point, undercutting comparable NVIDIA and AMD cards. Its refined drivers addressed many of the compatibility issues that affected the first-generation Arc Alchemist cards.

Full Specifications

General

Model

Intel Arc B580

Chipset

BMG-G21

Architecture

Intel Xe2-HPG (Battlemage)

Process Node

TSMC 5nm (N5)

Bus Interface

PCIe 4.0 x8

Performance

Cores

20 Xe2-cores (2,560 shading units)

Ray Tracing Cores

20 Ray Tracing Units

Base Clock

2670 MHz

Boost Clock

2850 MHz

Memory

Memory Size

12GB GDDR6

Memory Type

GDDR6

Memory Bus

192-bit

Power

TDP

190W

Power Connectors

1x 8-pin

Recommended PSU

600W

Connectivity

Outputs

3x DisplayPort 2.1, 1x HDMI 2.1

Dimensions

Slot Width

2-slot

Known Issues & Fixes

Issue	Solution / Fix
Some users reported stock shortages for months after launch due to high demand for its price-to-performance ratio.	Not fixable; a supply and demand issue at launch. Check Intel's official retailer list for restock availability.
A number of owners with older CPU platforms (lacking Resizable BAR support) reported reduced performance.	Enable Resizable BAR (or SAM) in your motherboard's BIOS; Arc GPUs rely on it more heavily than competing architectures for full performance.
